Guitar

A model-based test automation framework for GUI applications

Important Links

Manufacturer :

Sourceforge

Search more about this tool in QATestingTools archive

Visit Website

Download HERE

Tool Support link HERE

StackOverflow Search Questions

Tool Information

Introduction

Tool Summary

GUITAR software, a model-based system for automated GUI testing. This framework supports a wide variety of model-based GUI testing techniques. The innovation lies in the architecture of GUITAR, which uses plug-ins to support flexibility and extensibility. Software developers and quality assurance engineers may use this architecture to create new toolchains, new workflows based on the toolchains, and plug in a variety of measurement tools to conduct GUI testing.

Last Release Year ['Active'=Current]:

2016

Since (maturity):

2008

Guitar
	Tool Scope	Test Automation Framework
	Application Rights	Free Use, Opensource
	Since	2008
	Company	Sourceforge
	Support	Tool Support link HERE
	Download	Download HERE

Features

Key Features

automatically generate gui tests
End-to-end testing solution for GUI applications

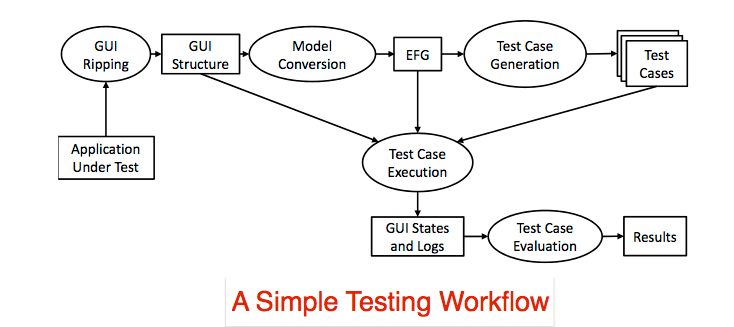

Testing process that consists of 4 main steps:
- ?Ripping: Automatically expand hidden GUI elements (e.g., sub-menus, sub-windows) and capture the GUI structure using a crawler-like tool called GUI Ripper
- Model construction: Construct a GUI model from the GUI structure (e.g., Event-flow Graph (EFG))
- Test case generation: Generate test cases by walking on the model with graph traversal algorithms
- Replaying: Execute test cases and verify the results
?Support for many different GUI widget toolkits

Transform the models into various formats such as GraphViz, UCINET, GEXF
Automatic reverse engineer the application's GUI structure

Analyze and construct the Event-Flow Graph model.
Serialization to/from XML formats
Built-in oracles for verifying test cases
Transform the Event-Flow Graph into various graph formats such as GraphViz, UCINET, etc for analysis

User Interface: Java Swing, .NET/Mono, Web-based
Programming Language: C#, C++, C, Java

Guitar 150.png

Getting Started

Dependencies

GUITAR has two primary dependencies:

Java: Machines running GUITAR should have 'Java Runtime Environment (JRE)' version 6 or later.
Bash: Machines should have a bash shell available. The bash shell is included by default on *nix machines, such as Mac, Ubuntu, Fedora Core, Redhat, etc. Windows users should install Cygwin in order to obtain a bash shell for running GUITAR scripts.

Tool Requirement

Sun Java Development Kit (version >= 1.6)
Apache Ant (version >=1.8)
Subversion Client

Presentation

Presentations

Click here to download the PDF file.

Files & Media

Media & Files

User Guide:

View User Guide

External Articles:

Adding a platform specific plugin

Understanding GUITAR XML file formats

The GUITAR API

Tool Images:

Price Information

DISCLAIMER

In any case of miss-information between QATestingTools and the manufacturer call-center or website, the manufacturer price is the one you should take in consideration,the QATestingTools is NOT responsible for any miss-understanding or miss-information since we are NOT always informed on prices programs updates. In all cases please get more details from manufacturer.

KickOff Pricing:

Free Use

Specifications

Tool Specifications

Application Rights:

Free Use

Opensource

Tool Scope:

Test Automation Framework

Testing Methods:

Tool Objectives:

Operating Systems:

OS Independent

Scripting Language:

C++

Dot.Net

Java

User Interface Available:

Batch Mode

COM API

GUI usability

Web based

Training:

Documentation OnSite
